Classic Mini Front Subframe Kit

Classic Mini Front Subframe Kit

$135.00 NZD
$135.00 NZD $135.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Description

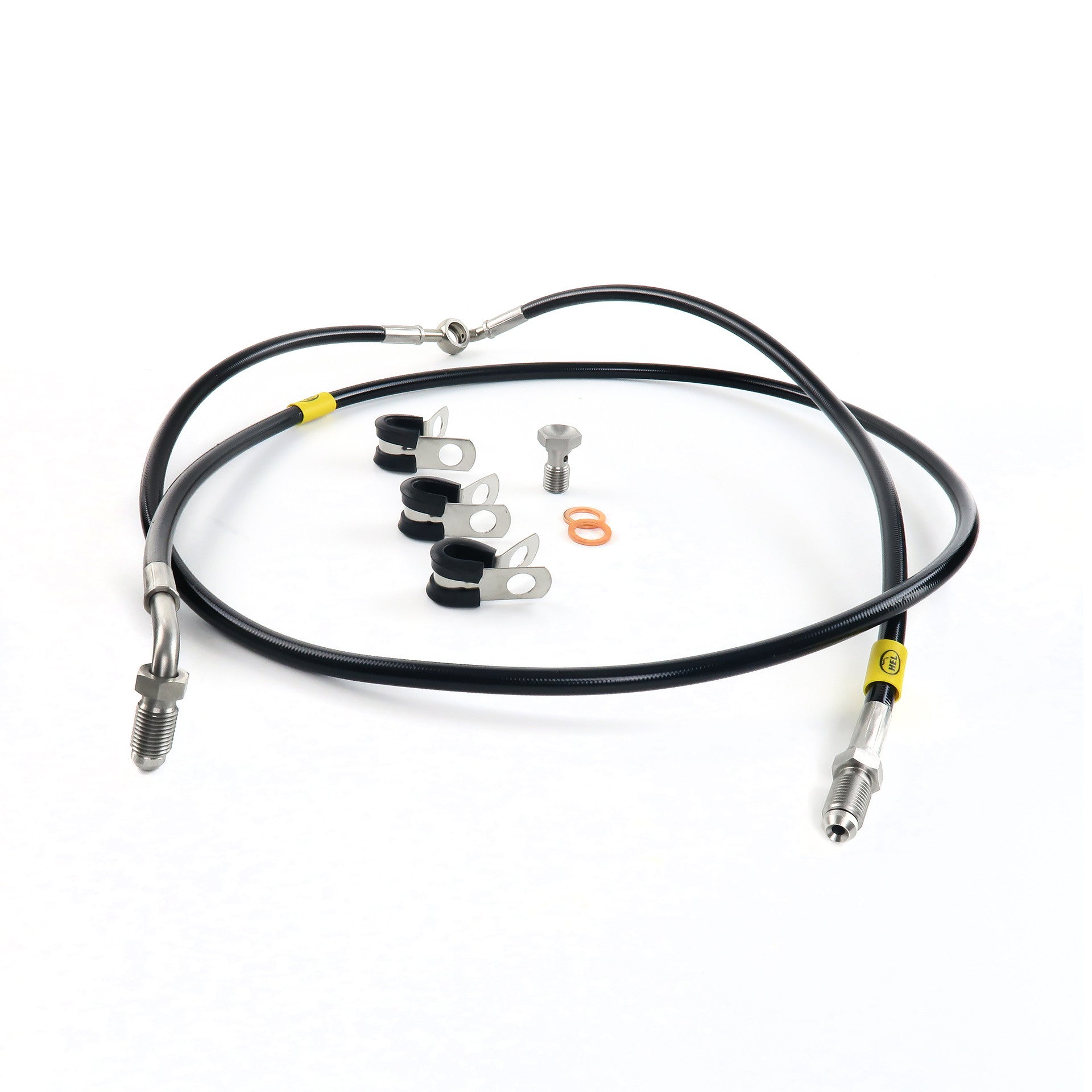

This kit replaces the hard line around the front subframe and up to the t-piece on the crossmember (early type) or to the PDWA valve (late type). Comes complete with stainless steel banjo bolt, copper crush washers and three p-clips for mounting on the subframe.

  • Single Line System (Early)
    This kit is designed for early cars using the original tin reservoir and t-piece on the crossmember.
  • Servo Assisted (Late)
    This kit is designed to work with later cars that have servo-assisted brakes and a PDWA valve on the crossmember.
  • Yellow Tag (Factory)
    This Kit is designed for cars that utilise an original yellow tag master cylinder and a PDWA valve from factory. The PDWA valve is mounted further to the right when compared to a late type servo-assisted setup.
  • Yellow Tag (Converted)
    This kit is designed for cars that have been converted from a late type servo-assisted setup to a yellow tag master cylinder with PDWA valve. This is a popular modification but requires a shorter line as the PDWA valve is mounted further over to the left to allow space for the now removed servo system.

If you have any questions regarding which kit is correct for your car or require a custom setup then please contact us and we'll be happy to help.
Want to see behind the scenes?

Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.

Hose Specifications
AN Hose Size AN3, AN03, -3
Internal Diameter 3mm, 1/8"
External Diameter 8mm, 5/16"
Weight (Per Metre) 71g, 0.16lbs
Inner Material (Core) PTFE
External Material (Overbraid) Stainless Steel - 303/304
External Material (Outer) PVC (Transparent or Coloured)
Fitting Material (Hose End) Stainless Steel - 303/304
Minimum Temperature -70°C -94°F
Maximum Temperature 250°C, 482°F
Operating Pressure 4206 PSI, 290 BAR
Burst Pressure 12618 PSI, 870 BAR
Minimum Bend Radius (90°) 19mm, 0.7"
Fluid Compatibility Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT)
Brand HEL Performance
