Classic Mini Late Type Servo Kit

Classic Mini Late Type Servo Kit

$135.00 NZD
$135.00 NZD $135.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Description

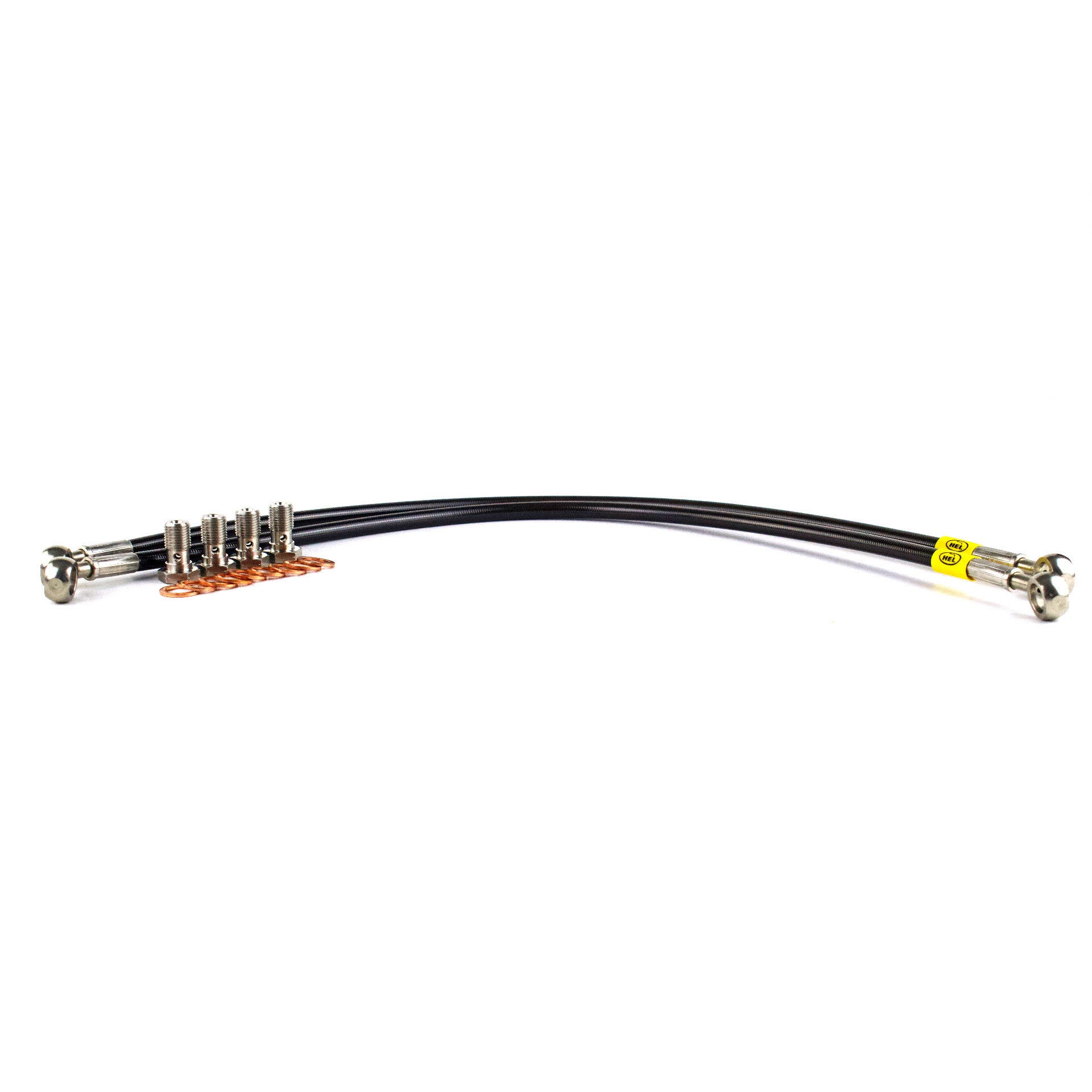

This kit replaces the hardline from the late type servo assisted master cylinder to the PDWA valve (FAM7821). The kit allows the Servo to be moved out of the way during maintenance without the need break into the system.

Want to see behind the scenes?

Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.

Hose Specifications
AN Hose Size AN3, AN03, -3
Internal Diameter 3mm, 1/8"
External Diameter 8mm, 5/16"
Weight (Per Metre) 71g, 0.16lbs
Inner Material (Core) PTFE
External Material (Overbraid) Stainless Steel - 303/304
External Material (Outer) PVC (Transparent or Coloured)
Fitting Material (Hose End) Stainless Steel - 303/304
Minimum Temperature -70°C -94°F
Maximum Temperature 250°C, 482°F
Operating Pressure 4206 PSI, 290 BAR
Burst Pressure 12618 PSI, 870 BAR
Minimum Bend Radius (90°) 19mm, 0.7"
Fluid Compatibility Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT)
Brand HEL Performance
