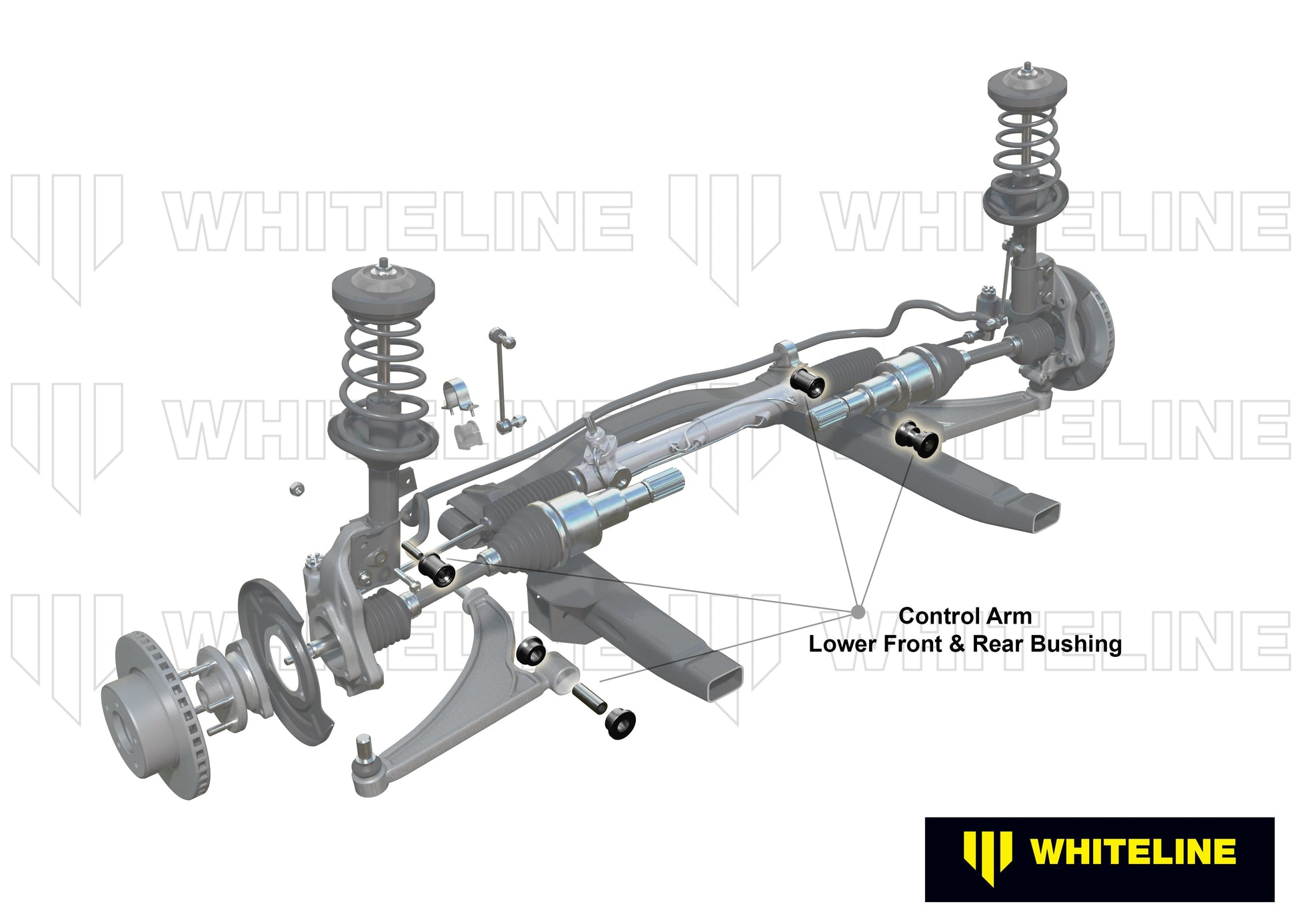

Front Control Arm Lower - Bushing Kit Double Offset to Suit Ford Mustang S197

Front Control Arm Lower - Bushing Kit Double Offset to Suit Ford Mustang S197

Details:

Foot Note 2: Adds +1.0deg caster + anti-dive

Foot Note 3: 3 Year / 60,000Kms

Sub Brand: Performance

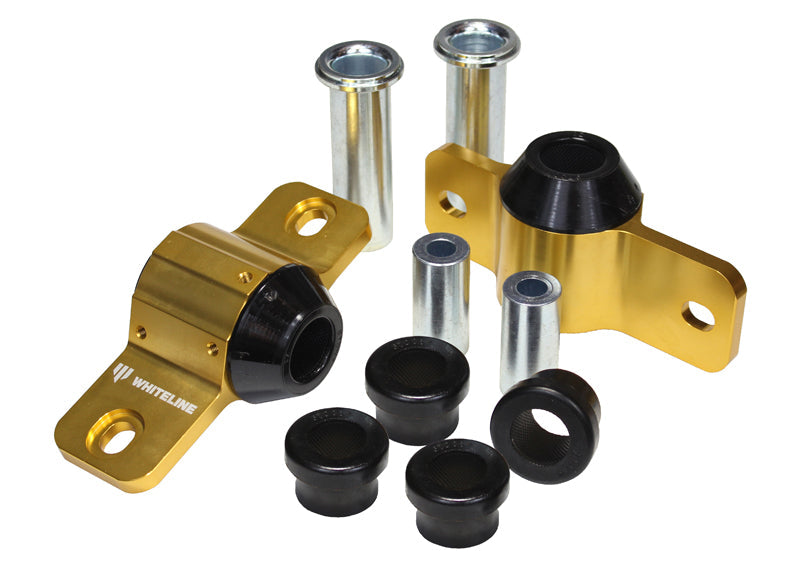

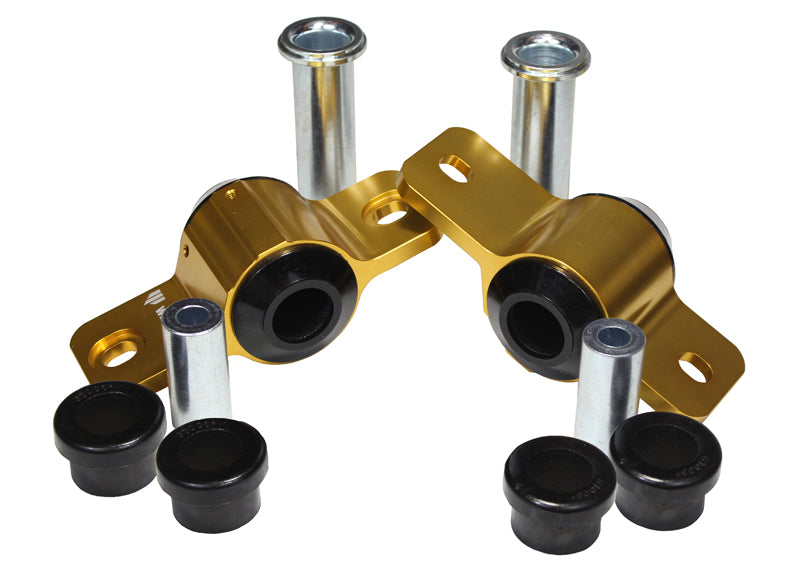

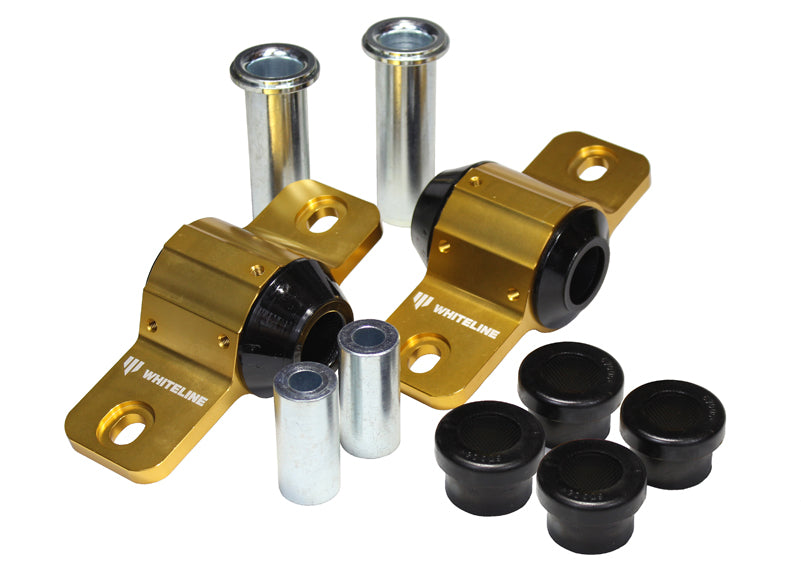

Components Per: 2 Housings, 4 Bushings, 4 Tubes, 6 Brackets, 6 Bolts, 16 Washers

Fitting Position: Front Axle

Wheel Alignment: Yes

Installation Difficulty: Suspension Specialist recommended. Use our Click & Fit service.

Installation time: 2.5 Hours

Kit Contents: 2 Housings, 4 Bushings, 4 Tubes, 6 Brackets, 6 Bolts, 16 Washers

Descriptions:

Benefit Note:

Whiteline Anti Dive Kits are primarily designed to improve traction, cornering grip and minimise toe change under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance. The Whiteline Anti Dive Kit provides 2 point caster adjustment changing the nature of front anti-dive and lift. Revised anti-dive geometry minimises deflection under braking whilst the low compliance synthetic elastomer bushings minimise dynamic caster loss and provide positive steering feedback. The result is superior traction under power and braking, improved turn-in and more consistent alignment angles during cornering. *All prices shown on the Whiteline website include GST. You will not be charged any additional fees related to tax.
