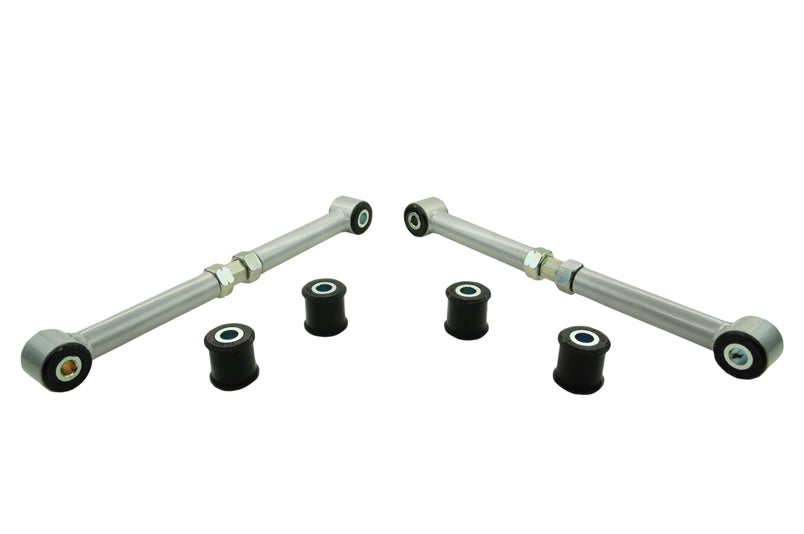

Rear Control Arm Lower Front - Arm to Suit Subaru Forester, Impreza, Liberty and Outback
Details:
Foot Note 1: Performance arms
Foot Note 3: 3 Year / 60,000Kms
Sub Brand: Performance
Components Per: 2 Arms, 4 Bushings, 4 Tubes

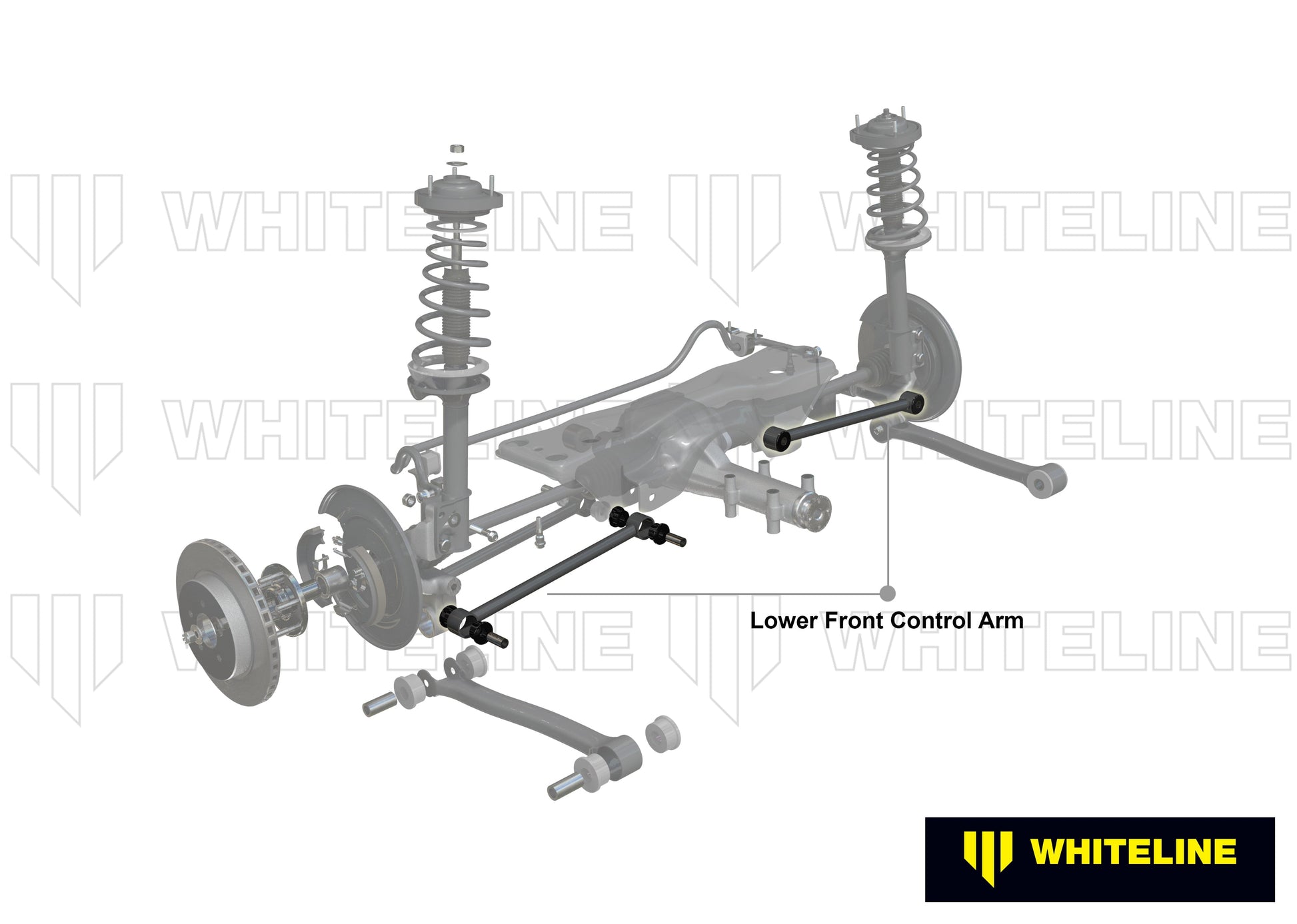

Fitting Position: Front
Wheel Alignment: Yes
Installation Difficulty: Easy if you have specialist tools and know what your doing.
Installation time: 2 Hours

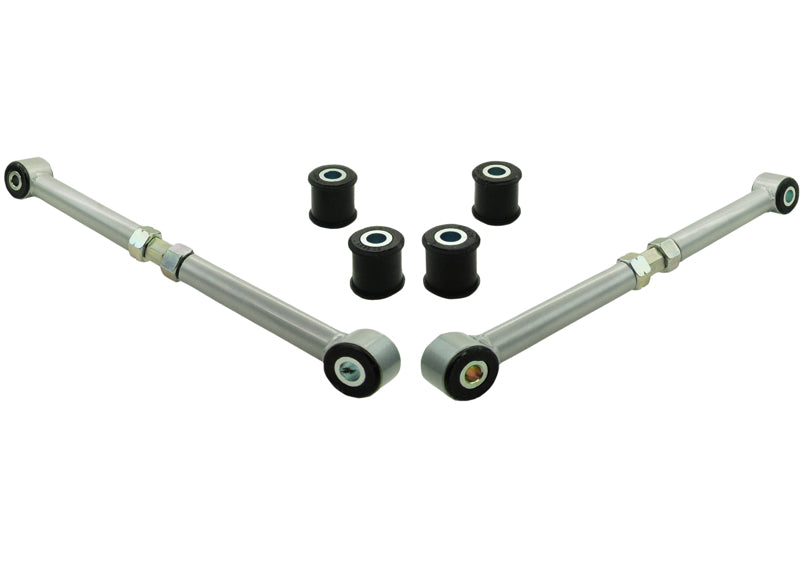

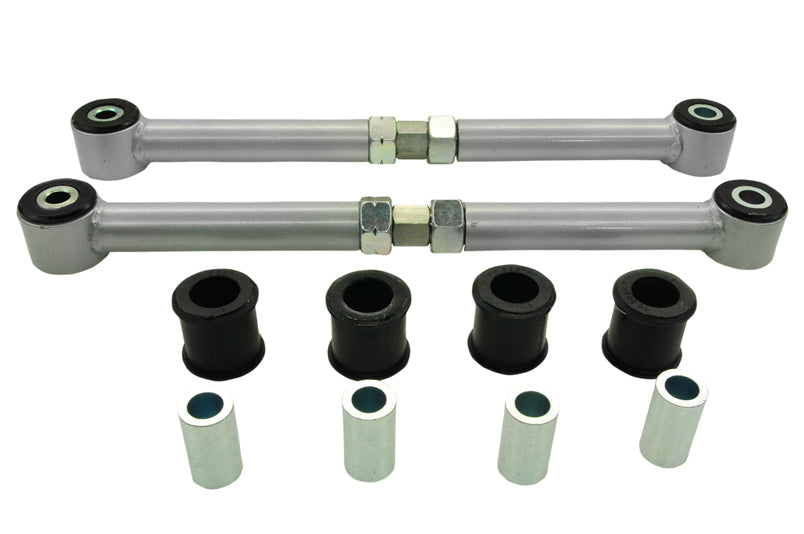

Kit Contents: 2 Arms, 4 Bushings, 4 Tubes
Descriptions:
Benefit Note:
This series of adjustable trailing arms are designed to modify factory camber - toe and track on the rear of Subaru Impreza and Liberty. Use KTA107 as an economical solution for lack of rear toe adjustment particularly on Impreza GD-GH (MY01- on) series. This kit is supplied as 2x adjustable front arms and matching rear arm poly bushings. KTA108 and KTA109 utilise 4 complete adjustable arms with performance low compliance bushings. The result is greater range and more precise adjustment and a more direct connection between body and rear suspension delivering more predictable dynamic behaviour. Left-right-hand thread adjustment turn-buckle nut allows for easy on-car adjustment. This series of adjustable trailing arms are designed to modify factory camber - toe and track on the rear of Subaru Impreza and Liberty. Use KTA107 as an economical solution for lack of rear toe adjustment particularly on Impreza GD-GH (MY01- on) series. This kit is supplied as 2x adjustable front arms and matching rear arm poly bushings. KTA108 and KTA109 utilise 4 complete adjustable arms with performance low compliance bushings. The result is greater range and more precise adjustment and a more direct connection between body and rear suspension delivering more predictable dynamic behaviour. Left-right-hand thread adjustment turn-buckle nut allows for easy on-car adjustment. *All prices shown on the Whiteline website include GST. You will not be charged any additional fees related to tax.
Vehicle Types;
Make/Model: SUBARU FORESTER, Chassis Group: 1997-2002 | FORESTER SF, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU FORESTER, Chassis Group: 2002-2008 | FORESTER SG, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU IMPREZA, Chassis Group: 1992-2000 | IMPREZA GC, GF, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU IMPREZA, Chassis Group: 1992-2000 | IMPREZA WRX GC, GF, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU IMPREZA, Chassis Group: 1992-2000 | IMPREZA WRX STI GC, GF, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU IMPREZA, Chassis Group: 2000-2007 | IMPREZA GD SEDAN, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU IMPREZA, Chassis Group: 2000-2007 | IMPREZA GG WAGON, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU IMPREZA, Chassis Group: 2000-2008 | IMPREZA WRX GD SEDAN, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU IMPREZA, Chassis Group: 2000-2008 | IMPREZA WRX GG WAGON, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU IMPREZA, Chassis Group: 2001-2005 | IMPREZA WRX STI GD MY02-MY05 SEDAN, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU IMPREZA, Chassis Group: 2005-2007 | IMPREZA WRX STI GD MY06, MY07 SEDAN, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU LIBERTY, Chassis Group: 1989-1994 | LIBERTY BC, BF, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU LIBERTY, Chassis Group: 1994-1999 | LIBERTY BD, BG, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
Make/Model: SUBARU OUTBACK, Chassis Group: 1996-1998 | OUTBACK BG, Important Note: Performance - on-car adjustable front arm and 4 x rear bushings for toe correction - MOTORSPORT
